NBR Rubber Oil Seal TC Type 50x72x8mm

NBR rubber oil seal TC type 50x72x8mm double lip skeleton rotary shaft seal with garter spring for pump motor gearbox
FKM TC Oil Seals

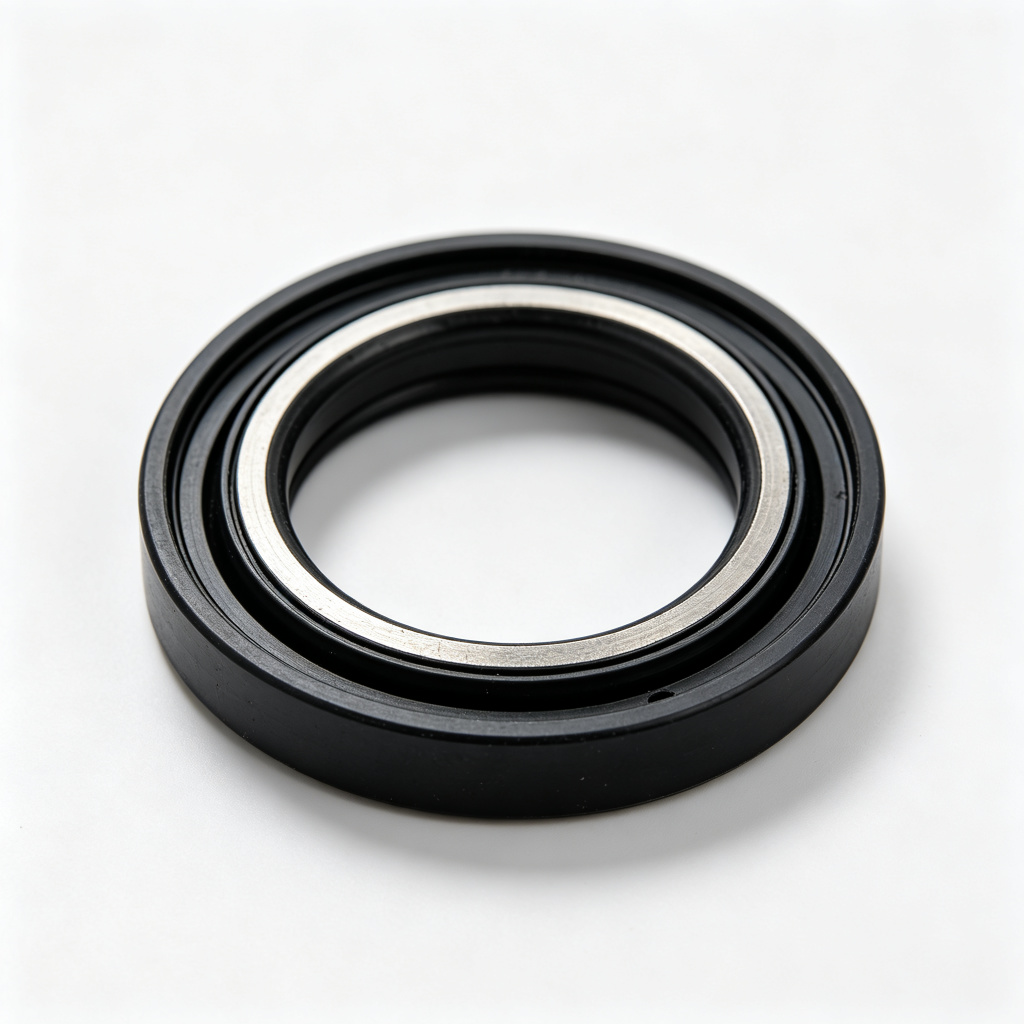

The NBR rubber oil seal TC type 50x72x8mm is a double lip, fully rubber-coated skeleton rotary shaft oil seal with a garter spring. This TC type NBR oil seal is made of high-quality nitrile rubber (NBR), with excellent wear resistance and good compatibility with common hydraulic oil, engine oil and gear lubricant. The 50x72x8mm size marks the 50mm inner diameter, 72mm outer diameter and 8mm width, and the seal is supplied for low-pressure rotary shaft applications.

What Is a TC Type NBR Oil Seal

The NBR rubber oil seal TC type 50x72x8mm is a standard double lip oil seal built for rotary shafts. Its TC structure has two lips: the primary sealing lip with a garter spring holds the oil inside, and the outer dust lip blocks dust, sand and muddy water from entering the seal area. The metal skeleton is fully wrapped by rubber, which gives better sealing performance on the outer diameter and avoids water ingress between the seal and the housing bore.

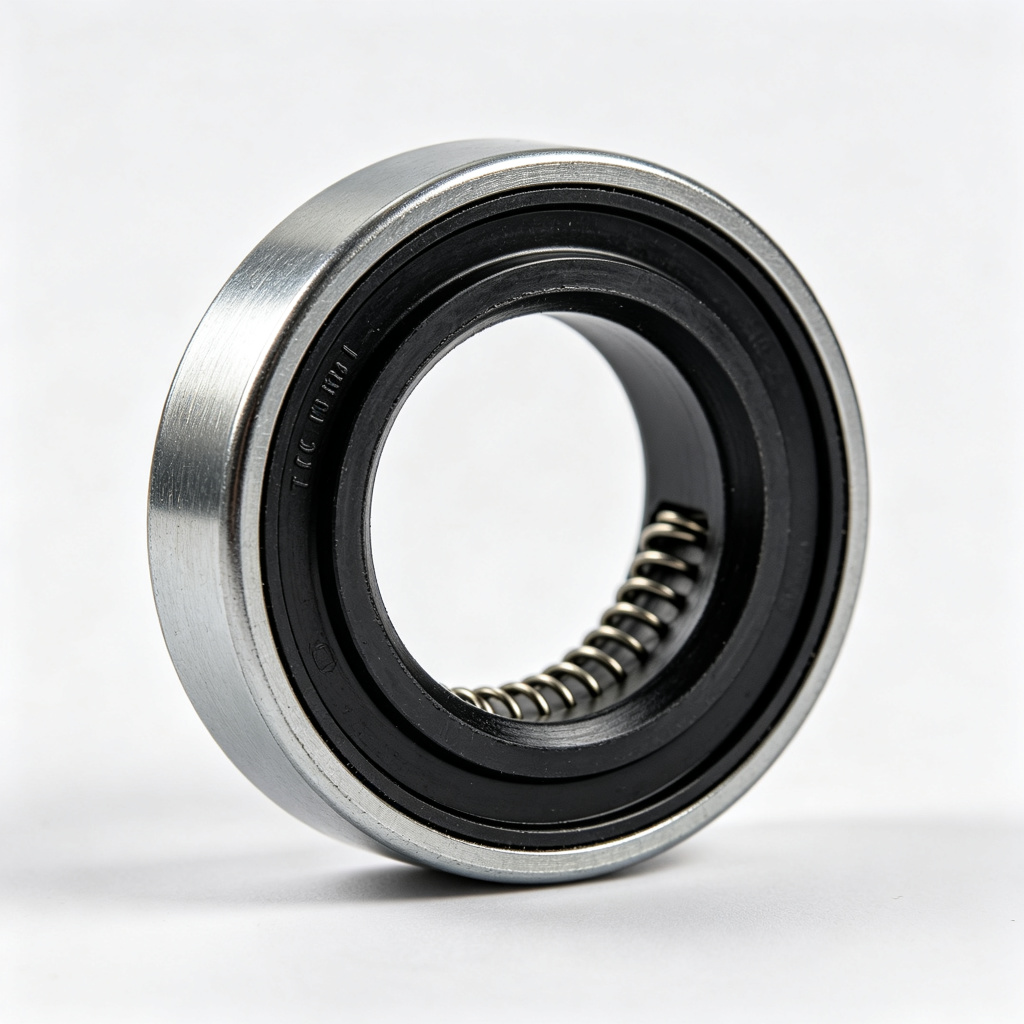

The garter spring presses the primary lip against the rotating shaft, maintaining even contact pressure around the shaft as the machine runs. The dust lip sits on the outside and keeps airborne contaminants away from the sealing lip, extending the service life of the seal in dusty or damp environments.

Material and Construction

Material and construction details:

  • Rubber: Nitrile rubber (NBR)
  • Structure: Double lip, rubber-covered skeleton, garter spring
  • Primary lip: Spring-energized, for oil retention
  • Dust lip: Auxiliary outer lip, blocks dust, sand and muddy water
  • Housing fit: Fully rubber-coated outer diameter for better OD sealing

NBR is a standard nitrile compound selected for general oil and lubricant service. It resists wear in sliding contact with the shaft and keeps a reliable seal against common hydraulic oils, engine oils and gear lubricants. For background on TC rotary shaft seal design, lips and installation, see this TC oil seal and rotary shaft seal guide.

Working Conditions and Applications

This NBR rubber oil seal TC type 50x72x8mm works for low-pressure rotary shaft applications, with a maximum working pressure of no more than 0.03 MPa. It is widely applied in:

  • Hydraulic pumps and hydraulic motors
  • Gear reducers and gearboxes
  • Agricultural machinery
  • Vehicle transmission shafts

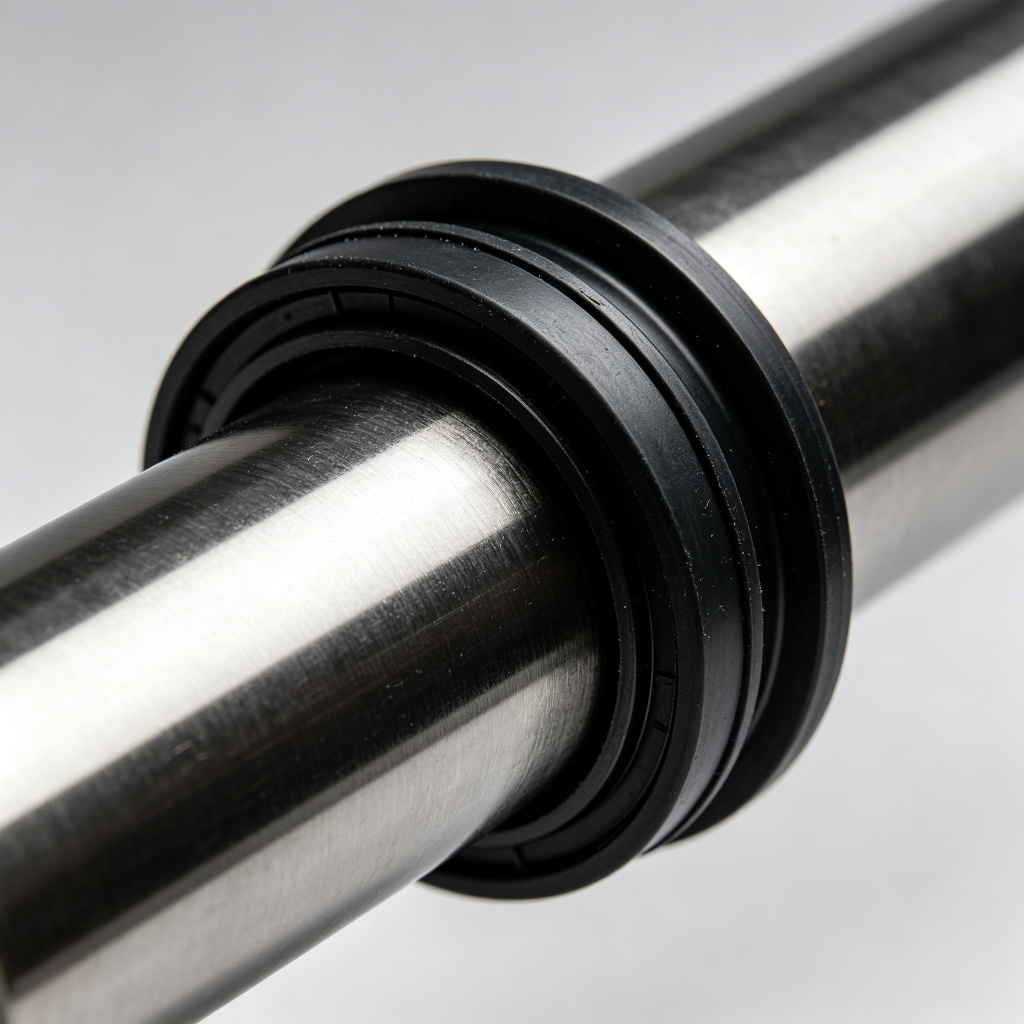

The seal is installed where a rotating shaft passes through a housing wall, keeping lubricant on the fluid side and protecting the shaft and bearings from external contamination. Related sealing products in our range include the hydraulic cylinder seal kit for mini crane service and the hydraulic guide ring and wear ring used inside cylinders.

Size Selection and Available Materials

TC oil seals are marked as TC ID × OD Width, the same size format used for this NBR rubber oil seal TC type 50x72x8mm. Standard TC sizes include examples such as TC20×35×7, TC25×40×8 and TC30×45×8, and custom sizes are available upon request. When ordering, provide the shaft diameter, housing bore, seal width, fluid medium and working temperature so the correct seal size and compound can be confirmed.

For conditions that need higher temperature resistance, TC oil seals are also available in FKM, HNBR and ACM materials to suit different working conditions.

Service

We supply a full range of standard sizes for TC type NBR oil seals, together with alternative compounds for special service. The NBR rubber oil seal TC type 50x72x8mm can be ordered as a standard size, and matching seals in other dimensions are available to suit different shafts and housings. Send us the required seal size, quantity, fluid and application, and our team will confirm the material, dimensions, packing and delivery for your oil seal order.
