High Tensile Hex Bolt Grade 8.8 M12x50mm

High Tensile Hex Bolt Grade 8.8

.

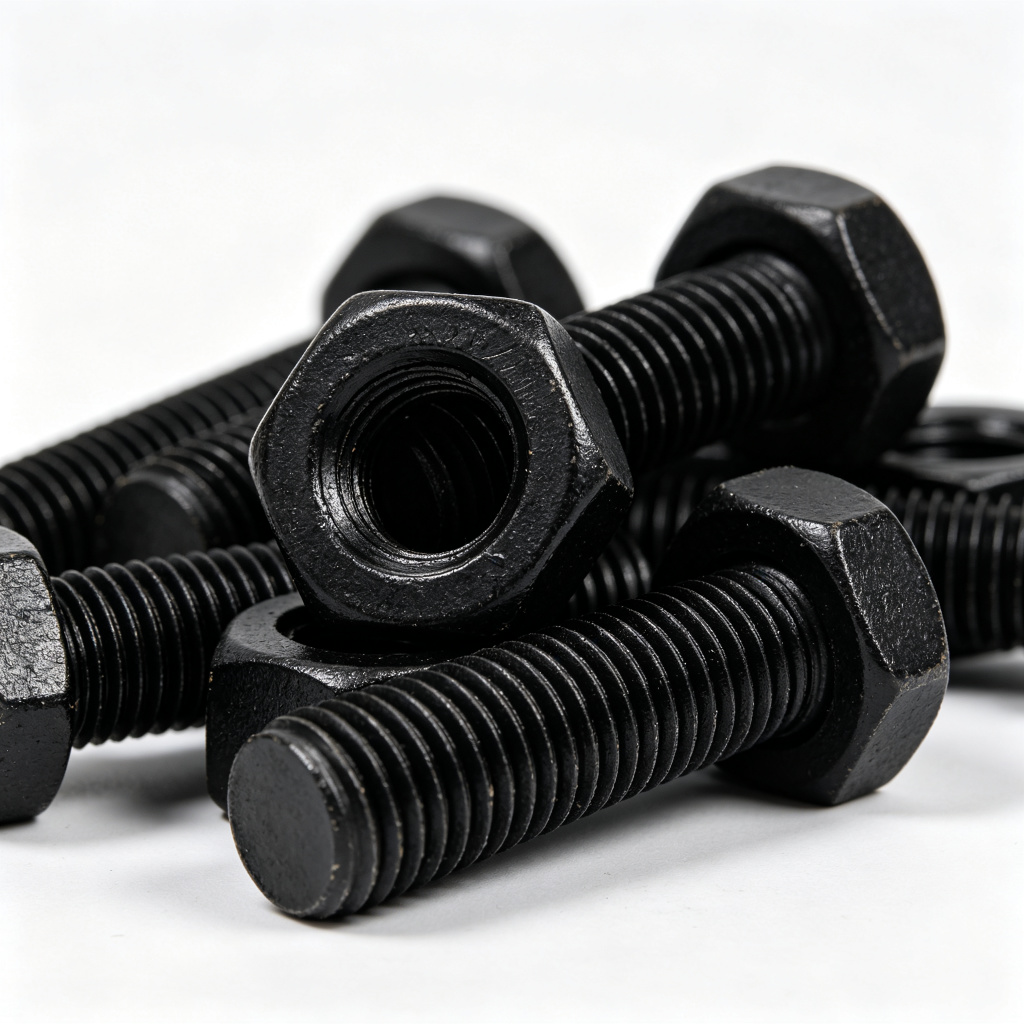

The high tensile hex bolt grade 8.8 is an alloy steel hexagon head bolt with a black oxide finish, manufactured to ISO 4014 and DIN 931 standards. This listing covers the M12 x 50mm size, built for high-strength fastening in steel structures, bridges, heavy machinery, railway and construction applications. The grade 8.8 classification provides a balanced strength level for general structural and mechanical fastening where reliable clamping force is required.

What Is a High Tensile Hex Bolt Grade 8.8

A high tensile hex bolt grade 8.8 is a threaded fastener with a hexagonal head that is tightened with a wrench or socket. The grade number indicates the fastener’s property class: the bolt is produced from alloy steel and controlled to a specified strength level so it can maintain clamping load under working stress. The hex head spreads the tightening torque across six flats, allowing a secure wrench fit and even load transfer into the joined parts.

This high tensile hex bolt grade 8.8 is used where parts are assembled under load and the connection must remain tight over time. Common roles include connecting steel members, fastening machinery frames, securing equipment brackets and joining structural components that experience vibration or static load. The bolt is typically paired with a matching nut and washers to complete the fastener set and distribute the bearing surface.

Material, Standard and Finish

Material: alloy steel, property class Grade 8.8.

  • Standard: ISO 4014 / DIN 931, hexagon head bolts
  • Surface: black oxide, a dark finish that provides a base layer of protection and a clean industrial appearance
  • Head: hexagon, designed for wrench or socket tightening

The black oxide finish is applied as the standard surface treatment for this bolt. In outdoor or corrosive environments, additional protection such as plating or coating should be considered according to the exposure condition. For background on bolted connection practice and assembly, see this high strength structural bolt connection and assembly guide.

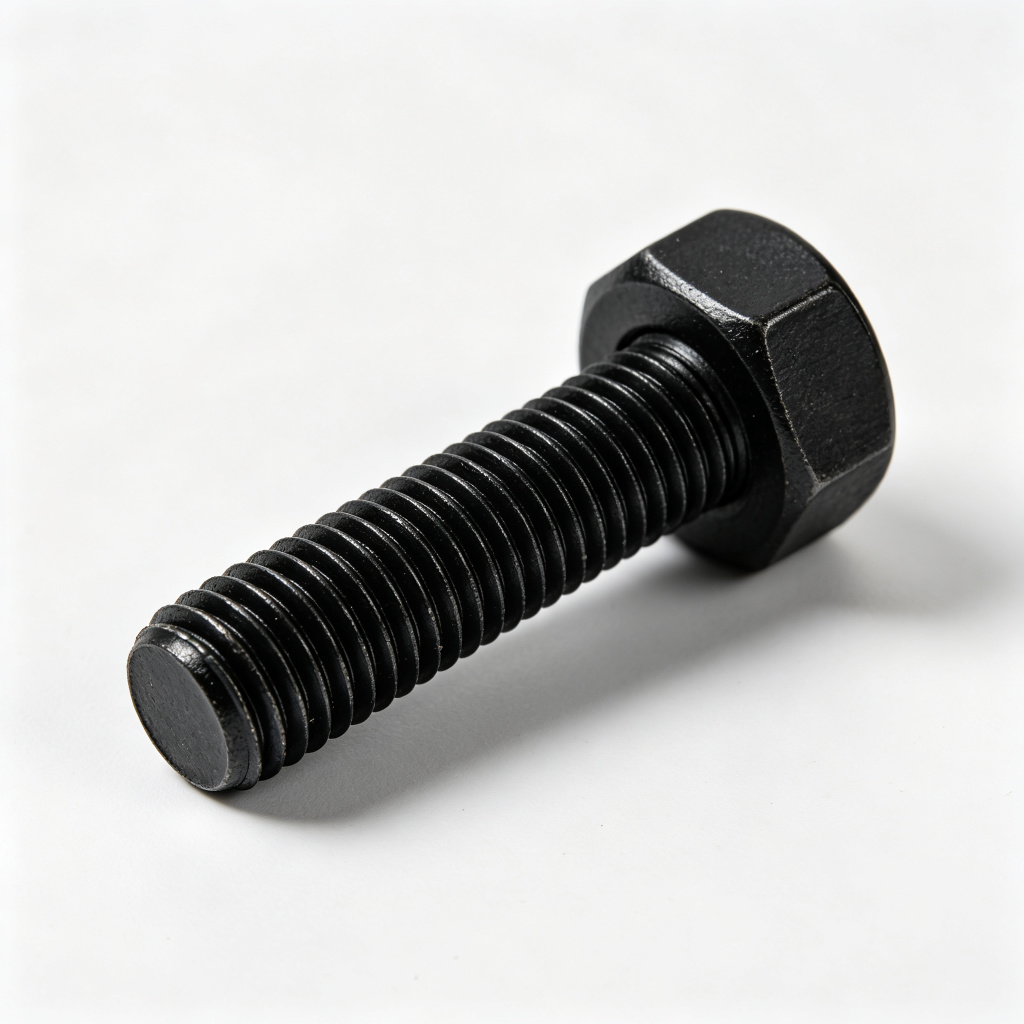

Dimensions: M12 x 50mm Hexagon Head

The listed high tensile hex bolt grade 8.8 is specified as follows:

  • Thread: M12
  • Length: 50 mm
  • Head: hexagon
  • Standard: ISO 4014 / DIN 931

M12 denotes a 12mm metric thread, and the 50mm length refers to the bolt shank length under the head. When selecting a bolt, confirm the thread diameter, shank length, hole clearance and total thickness of the joined parts, so the engaged thread and exposed shank are suitable for the connection.

Typical Applications

This high tensile hex bolt grade 8.8 is suited to a range of high-strength fastening duties:

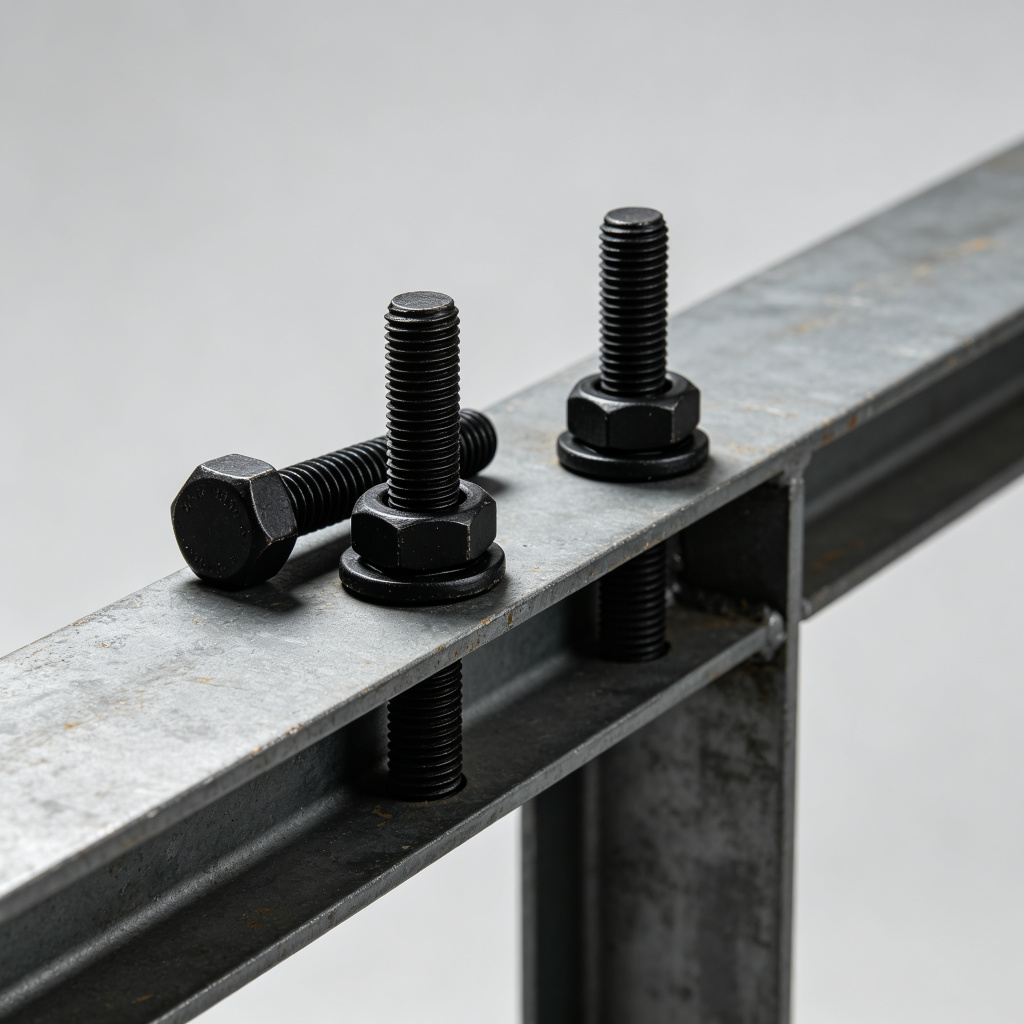

  • Steel structure and bridge connections
  • Heavy machinery and equipment assembly
  • Railway and construction fastening
  • General high-strength fastening in mechanical and structural work

This high tensile hex bolt grade 8.8 is supplied as part of our fastener range. Related products include the 10.9S structural bolt for steel building connections, which covers higher-strength structural bolting, and the carriage bolt DIN 603, a round-head fastener used in general fastening and wood-to-steel connections.

MOQ and Order Service

The minimum order quantity is 2000 pieces per size. Higher property classes, Grade 10.9 and Grade 12.9, are also available on request for applications that require greater strength.

  • Sample lead time: 3–7 days
  • Bulk production lead time: 15–25 days

We supply standard metric sizes and can discuss custom dimensions, materials and finishes according to your project requirement. Send us the thread diameter, length, quantity, standard and application, and our team will confirm the available grade and finish for your fastening project.

Browse our full fastener range, including structural bolts, carriage bolts, nuts, washers and rigging hardware for construction, machinery and industrial assembly.
