NBR Rubber Flange Gasket

NBR rubber flange gasket 70 Shore A black nitrile seal for pipe flange valve pump oil gas pipeline EN 1514 ASME B16.20

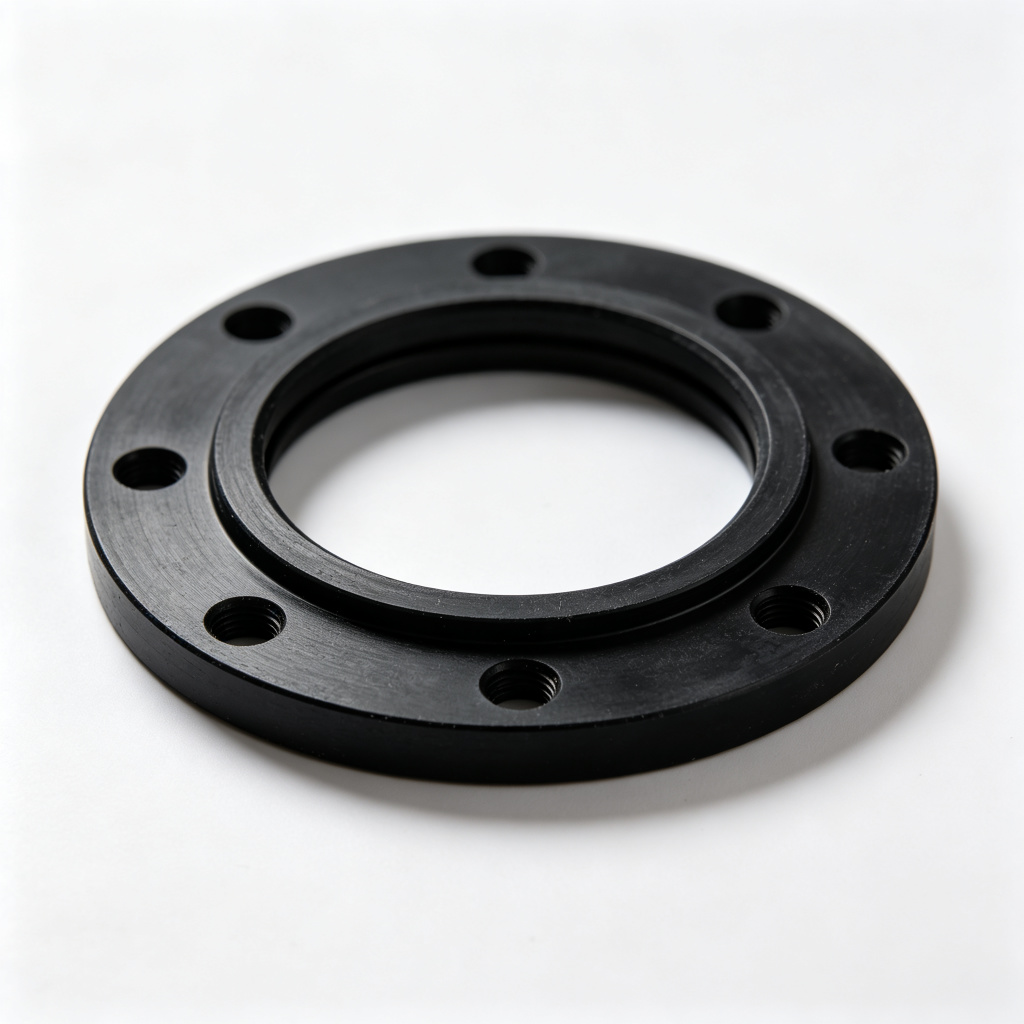

The NBR rubber flange gasket is a black nitrile sealing ring, hardness 70±5 Shore A, designed to seal the joint between pipe flanges, valves and pumps. This flange gasket operates from -40°C to +120°C and follows EN 1514 and ASME B16.20 standards, with custom sizes available upon request. It is a general industrial sealing element for oil, gas and liquid connections where a durable, oil-resistant rubber seal is required.

What Is an NBR Rubber Flange Gasket

A flange gasket is placed between two mating flange faces to form a static seal. When the flange bolts are tightened, the rubber gasket compresses and fills small gaps on the flange surface, preventing fluid or gas leakage along the joint. The NBR rubber compound provides good resistance to oils, fuels and petroleum-based fluids, making this flange gasket a common choice for hydraulic, pneumatic and oil-line connections.

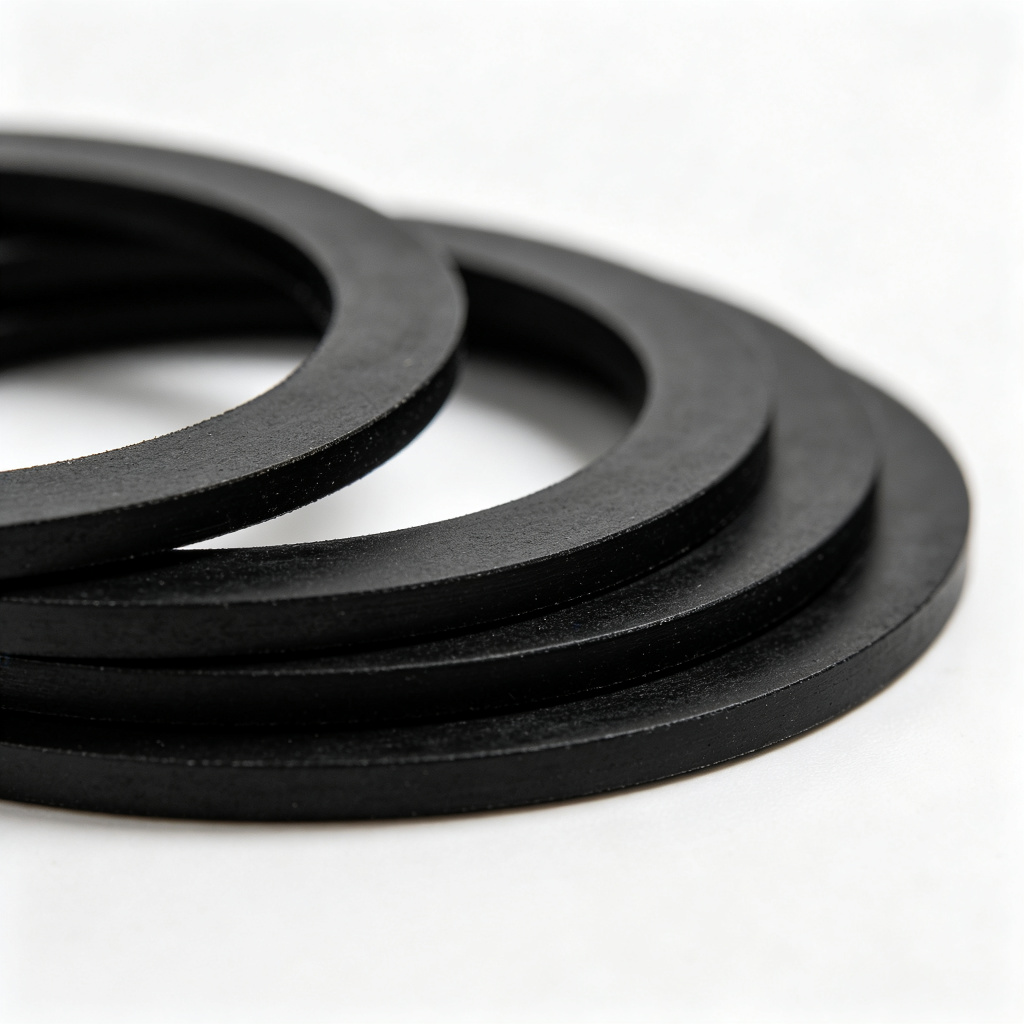

This NBR rubber flange gasket is supplied as a black sealing part. Its balanced 70±5 Shore A hardness gives the gasket enough firmness to keep its shape while remaining compressible enough to seat evenly against the flange face.

Material, Hardness and Temperature

Material and performance details:

  • Rubber: NBR (nitrile butadiene rubber)
  • Hardness: 70±5 Shore A
  • Color: Black
  • Temperature range: -40°C to +120°C

NBR is a nitrile rubber commonly selected for oil and hydrocarbon service. Within its temperature range, the rubber keeps its elasticity and sealing contact against the flange. For background on rubber gasket materials and their oil, gas and temperature compatibility, see this industrial rubber gasket material guide.

Dimensions and Standards

Dimension and standard details:

  • Standard: EN 1514 / ASME B16.20
  • Custom sizes: Available upon request

The flange gasket can be ordered to the flange size and bore required for your pipe, valve or pump connection. When placing an inquiry, provide the flange standard, nominal size, inner and outer diameter, thickness, fluid medium and temperature, so the correct gasket size and compound can be confirmed.

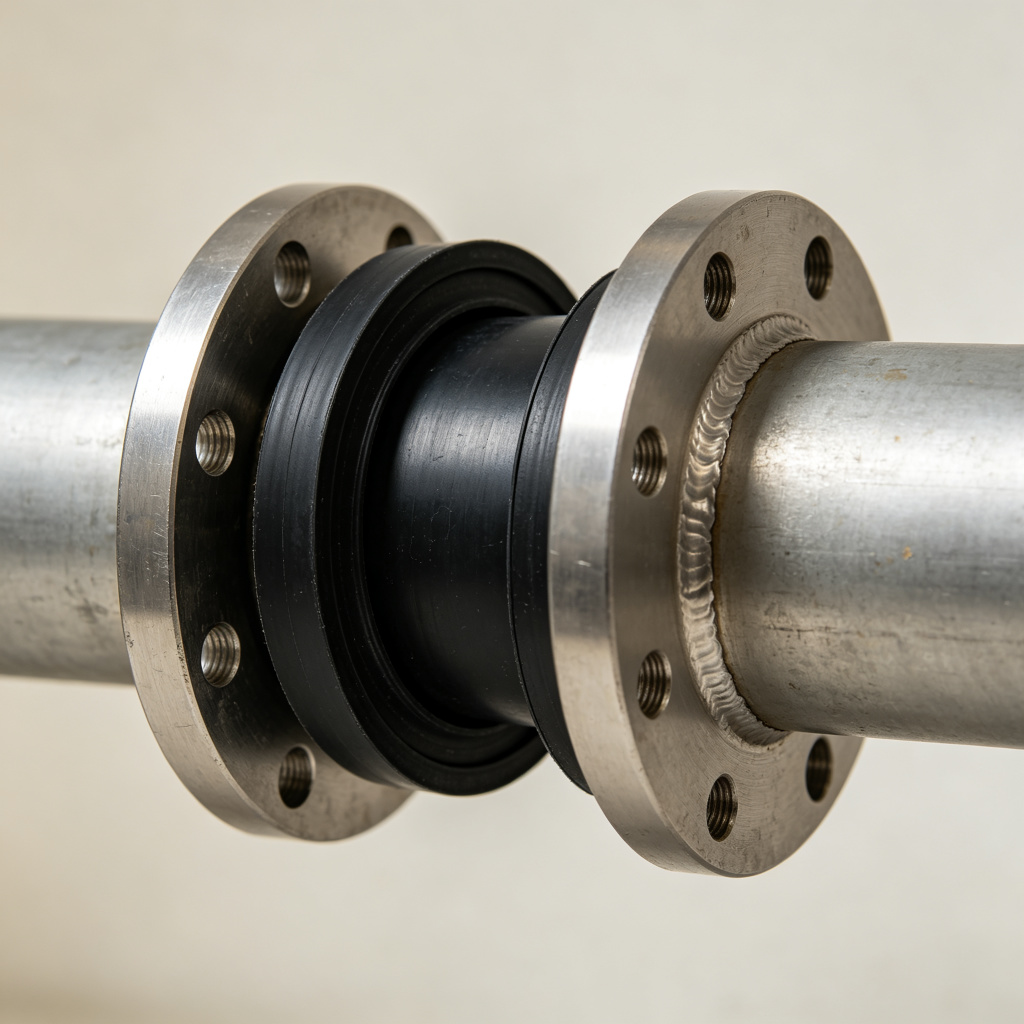

Before assembly, inspect the flange faces for damage, dirt or residual seal material, and make sure the gasket sits flat and centered without twisting. Even bolt tightening around the flange helps the gasket compress uniformly, so the seal stays in contact around the full circumference. A gasket that is folded, pinched or placed off-center can leak even when the compound and size are correct.

Typical Applications

This NBR rubber flange gasket is mainly used in:

  • Pipe flange joints
  • Valves and pumps
  • Oil and gas pipelines
  • General industrial sealing

It works as a static seal between flange faces in general equipment and piping assemblies. Because NBR is chosen for oil resistance rather than steam or strong chemicals, it should be matched to the actual fluid and temperature; if the line carries steam, hot water or aggressive chemicals, an EPDM or FKM compound should be considered instead. Related sealing products in our range include the hydraulic cylinder seal kit for mini crane service and the hydraulic guide ring and wear ring used inside cylinders.

MOQ, Materials and Service

Order and service details:

  • MOQ: 500 pcs per size
  • Custom sizes and other materials: EPDM, FKM available
  • Sample: 3–7 days
  • Bulk lead time: 15–25 days

Beyond NBR, EPDM and FKM compounds are available for applications where steam, hot water, chemicals or higher-temperature fluids are involved. Send us the flange size, quantity, fluid and working conditions, and our team will confirm the material, dimensions, packing and delivery for your flange gasket order.

Our NBR rubber gaskets are inspected for hardness, dimensions and surface finish before packing, and can be supplied with the packing arrangement that suits your flange assembly and stocking requirements. Contact us with your flange drawing or standard reference for a tailored proposal. Browse our full fastener and seal range, including bolts, nuts, washers, hose clamps, O-rings, gaskets and hydraulic seals for construction, machinery, automotive, marine and industrial assembly.
