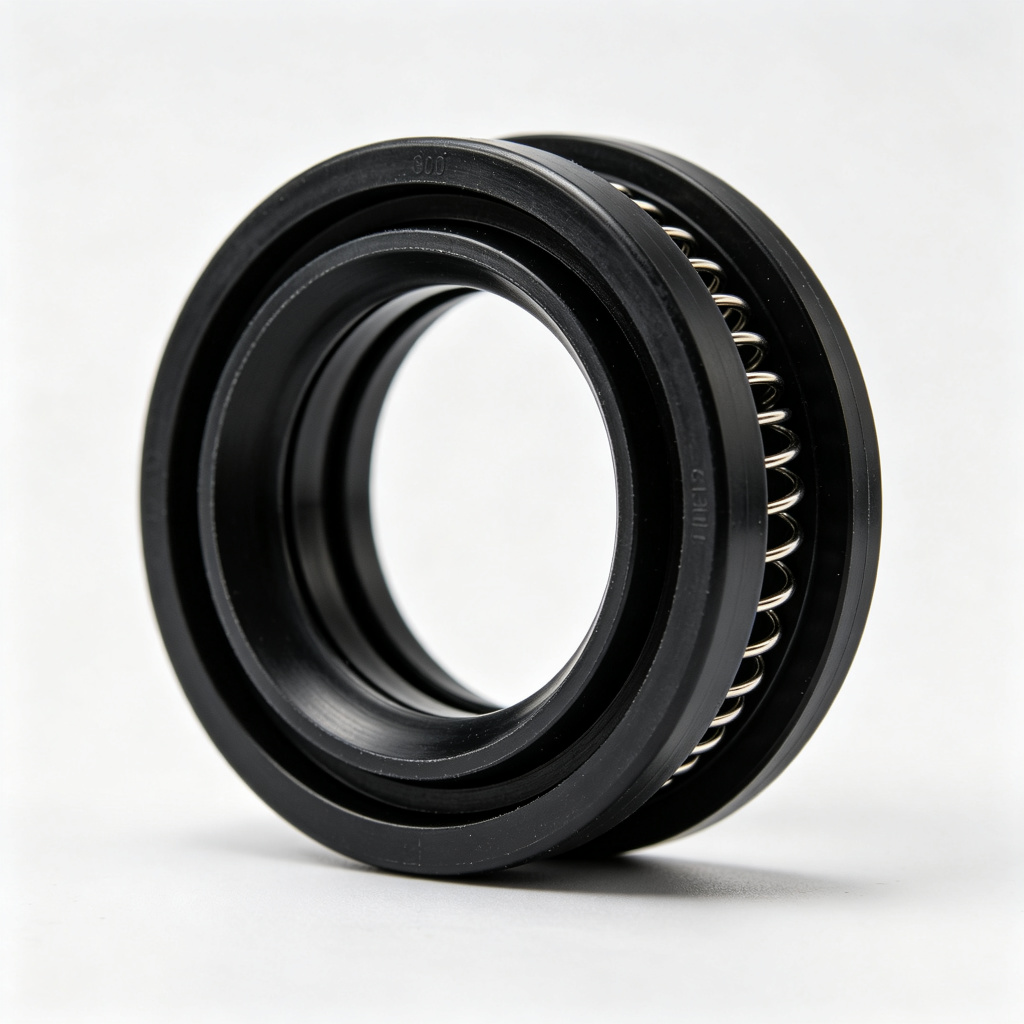

Hydraulic Piston Rod Seal (PU U-Cup)

hydraulic piston rod seal PU U-cup 92 Shore A NBR oil seal for mobile hydraulic crane cylinder excavator

A hydraulic piston rod seal is installed in the cylinder head gland where the piston rod slides in and out of a hydraulic cylinder. This hydraulic piston rod seal seals oil on the piston rod side and prevents hydraulic fluid from leaking out along the moving rod. Supplied as a PU U-Cup in polyurethane 92 Shore A with an NBR option, it keeps the rod-side chamber pressurized and protects the system against fluid loss under reciprocating movement.

What Is a Hydraulic Piston Rod Seal

The hydraulic piston rod seal belongs to the rod seal group, which contacts the sliding piston rod rather than the cylinder bore. It sits in the gland groove on the atmosphere side of the cylinder and its sealing lip rides along the rod surface on every stroke. Its main duty is to retain hydraulic oil inside the cylinder, so pressure stays in the working chamber and the rod can extend and retract under load without weeping oil along the rod.

In a complete cylinder assembly, the rod seal works alongside the piston seal, which retains pressure across the piston, and the wiper seal, which wipes external dust and dirt off the rod. The guide ring keeps the rod centered and carries side load, so the rod seal lip remains square to the rod surface and wears evenly. Together these elements cover pressure retention, contamination control and alignment inside the cylinder.

Material: PU 92 Shore A and NBR

We supply the hydraulic piston rod seal in two material options:

  • Polyurethane (PU) 92 Shore A: a hard wear-resistant material with good abrasion resistance and extrusion resistance, suited to mobile hydraulics and repeated rod movement
  • NBR (nitrile rubber): a resilient general-purpose elastomer with good mineral oil compatibility, selected for standard hydraulic service

The PU U-Cup version provides a firm sliding lip that resists wear against the rod, while the NBR option offers a cost-effective resilient seal in general mineral oil service. Material choice depends on system pressure, fluid type, rod surface finish, temperature and the level of contamination in the working environment. For background on rod seal profiles and material selection, see this hydraulic rod seal types and materials guide.

How the Rod Seal Prevents Leakage

As the piston rod extends and retracts, the rod surface moves past the gland. The hydraulic piston rod seal keeps the sealing lip pressed against the rod, so hydraulic oil is held inside the cylinder chamber instead of escaping along the rod clearance. Under system pressure, the seal lip is energized against the rod, maintaining contact that reduces bypass leakage and oil weeping during both extension and retraction.

A secure fit in the gland groove and a smooth undamaged rod surface are essential for leak-free performance. During assembly, the seal should be seated flat without twisting or overlap, and the rod should be free of scoring, rust or nicks that could cut the lip. At maintenance intervals, the seal should be checked for cracking, hardening, flattening, embedded grit or visible oil leakage; a worn rod seal should be replaced before it allows persistent fluid loss or lets contamination reach the inner seals.

Typical Applications

This hydraulic piston rod seal is widely used in:

  • Mobile hydraulics and mobile equipment cylinders
  • Crane cylinders and lifting machinery
  • Excavators and construction machinery hydraulic circuits
  • Industrial hydraulic systems that seal oil on the rod side

It forms part of a matched sealing set. Related products in our range include the hydraulic guide ring, which aligns the rod and absorbs side load, the hydraulic piston seal, which retains pressure across the piston, and the hydraulic cylinder seal kit, which combines rod seals, piston seals and wiper elements for a complete reseal.

MOQ and Custom Service

The minimum order quantity for this hydraulic piston rod seal is 500 pieces. We supply standard U-Cup sizes matched to common rod diameters and can produce custom seal profiles and dimensions to your drawing or measured sample. OEM and ODM service is available, including material selection and packing to your project requirement.

Send us the rod diameter, gland groove dimensions, system pressure, fluid type and working environment, and our engineers will confirm the piston rod seal material and size for your hydraulic application.

Browse our full hydraulic seal range, including piston seals, wiper seals, guide rings and back-up rings for construction machinery and industrial hydraulic systems.
