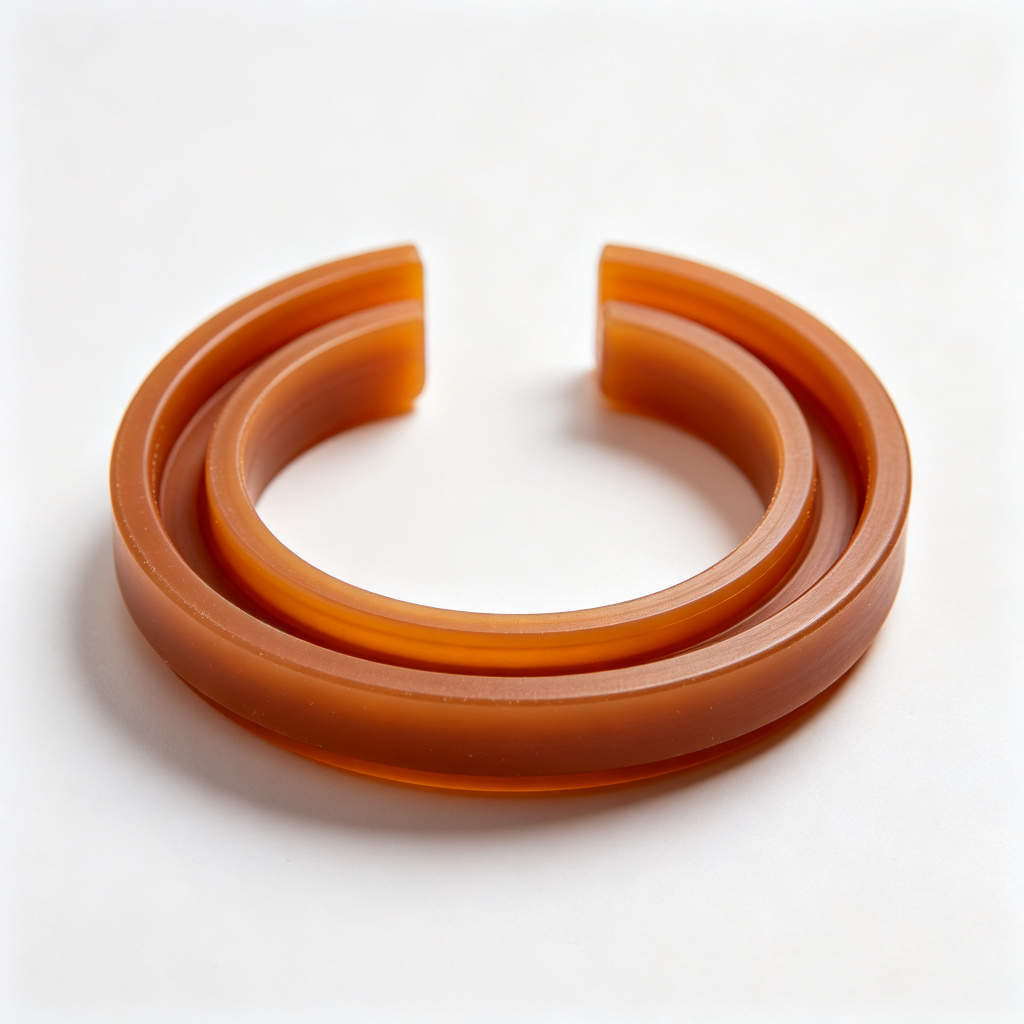

Hydraulic Piston Seal (Double Acting)

hydraulic piston seal double acting PU fabric reinforced NBR high pressure seal for hydraulic cylinder heavy machinery

A hydraulic piston seal is fitted on the piston inside a hydraulic cylinder to retain hydraulic fluid on either side of the piston. This hydraulic piston seal is a double-acting seal made from PU and fabric-reinforced NBR, built for high pressure resistance in reciprocating cylinder movement. It prevents fluid bypass from one chamber to the other, so the piston can hold position and transmit force in both extension and retraction directions.

What Is a Hydraulic Piston Seal

The hydraulic piston seal sits in the groove on the piston, riding against the cylinder bore rather than the rod. Its task is to seal across the piston, keeping pressure in the working chamber so hydraulic force drives the piston smoothly under load. Unlike the rod seal at the gland, which seals along the moving rod, the piston seal contacts the inner bore and maintains pressure separation between the two sides of the piston.

In a double-acting cylinder, pressure acts on the piston from both directions over the stroke cycle. The piston seal therefore has to keep the bore contact in both directions, preventing bypass leakage that would slow movement, reduce holding force or make the cylinder drift under load. It works together with the guide ring, which keeps the piston centered and carries side load, so the seal lip remains square to the bore.

Material: PU and Fabric-Reinforced NBR

We supply the hydraulic piston seal in two material options:

  • PU (polyurethane): a wear-resistant sliding material with good elasticity and abrasion resistance, suited to repeated reciprocating motion against the bore
  • Fabric-reinforced NBR: an elastomer reinforced with fabric for added strength and extrusion resistance, selected where higher pressure and a firmer sealing body are required

The PU element provides the smooth sliding surface against the bore, while the fabric-reinforced NBR body supplies the resilient pre-tension that keeps the seal pressed against the bore as wear develops. Material choice depends on system pressure, fluid type, bore finish, clearance and working cycle. For background on combined PU and NBR piston seal designs, see this double acting piston seal guide for hydraulic cylinders.

Double-Acting Sealing and High Pressure Resistance

A double-acting piston seal is engineered to seal bidirectionally. When pressure builds on one side, the seal is pressed into the bore on that face; on the return stroke, the opposite face takes the pressure. This two-direction contact keeps fluid from bypassing the piston in either direction, which is essential for controlled cylinder movement under load.

The high pressure resistance of the seal depends on a firm body, a wear-resistant sliding surface and a secure fit in the piston groove. A reinforced NBR body resists extrusion into the bore clearance under pressure, while the PU sliding surface handles repeated bore contact without rapid wear. During assembly, the seal should be seated flat in the groove without twisting or overlap, and the bore surface should be free of scoring, rust or damage that could cut the seal lip.

Typical Applications

This hydraulic piston seal is widely used in:

  • Hydraulic cylinders on mobile and stationary equipment
  • Heavy machinery requiring reliable piston pressure retention
  • Industrial hydraulic systems where bypass leakage and cylinder drift must be controlled
  • Reciprocating cylinders working under load in both directions

It forms part of a matched cylinder sealing set. Related products in our range include the hydraulic guide ring, which aligns the piston and rod and absorbs side load, and the hydraulic cylinder seal kit, which combines piston seals, rod seals and wiper elements for a complete reseal. The hydraulic wiper seal at the gland keeps external dirt out of the same assembly.

MOQ and Custom Service

The minimum order quantity for this hydraulic piston seal is 500 pieces. We supply standard profiles matched to common piston and bore sizes, and can produce custom seal dimensions to your drawing or measured sample. OEM and ODM service is available, including material selection and packing to your project requirement.

Send us the bore diameter, piston groove dimensions, system pressure, fluid type and whether the cylinder is double-acting, and our engineers will confirm the piston seal material and size for your hydraulic application.

Browse our full hydraulic seal range, including rod seals, wiper seals, guide rings and back-up rings for construction machinery and industrial hydraulic systems.
